// Engineering Services

CUSTOM LCD RESIZING
& DISPLAY ENGINEERING.

Your enclosure. Our display. Three services built on one core capability — producing LCD panels at dimensions that standard manufacturers do not make. Cell-only or complete module. No minimum order.

Request Feasibility Review Browse Catalog
01
LCD Cell Resizing
Physical modification of glass, optical stack, flex ribbon, and PCB to your specified active area
02
Complete Module Assembly
Backlight, driver electronics, housing, and connectors — delivered tested and program-ready
03
First Article & Program Support
first-article inspection reports, dimensional verification, and configuration control for formal qualification programs
6–8 Week ARO Lead Time
NO Minimum Order Quantity
1 Day Feasibility Response
FREE Feasibility & Budgetary Quote
// Service 01

LCD CELL RESIZING

The core process. Custom active area from any donor panel.

The physical process of cutting and resealing an LCD cell to produce a custom active area. The glass substrate, optical stack, liquid crystal fill, flex ribbon, and driver PCB are all modified to your specified dimensions. The result is a fully functional active matrix panel at a size that no OEM produces.

Works across square, rectangular, wide, and ATI-format geometries. Resolution and pixel pitch are determined by donor panel selection — engineering identifies compatible options for your active area and confirms feasibility within one business day.

Lead Time 6–8 Weeks ARO
Minimum Order No MOQ
Active Area Any dimension — custom to specification
Feasibility Review No charge — 1 business day
Deliverable Cell-only or complete module
Markets Aerospace · Avionics · ATI · Defense · Medical
Request Feasibility Review →

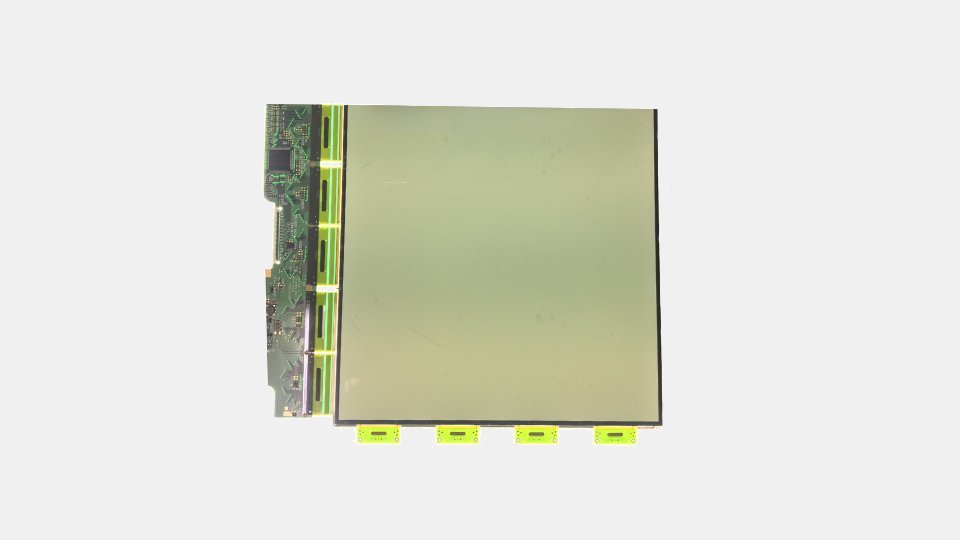

Completed resized LCD cell — custom active area, final format

// Completed resized LCD — custom active area

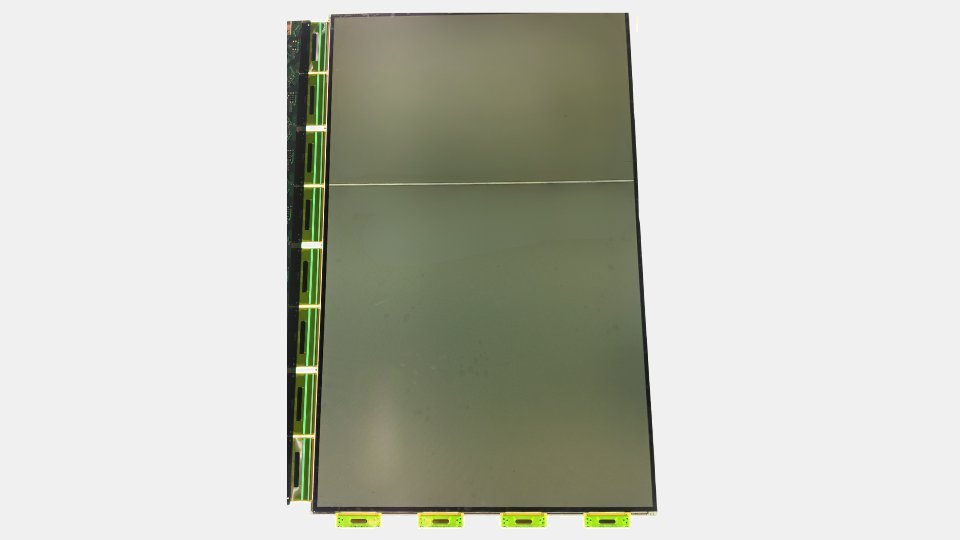

Phase 01 — Donor LCD panel scribed for resizing
01 Donor Panel

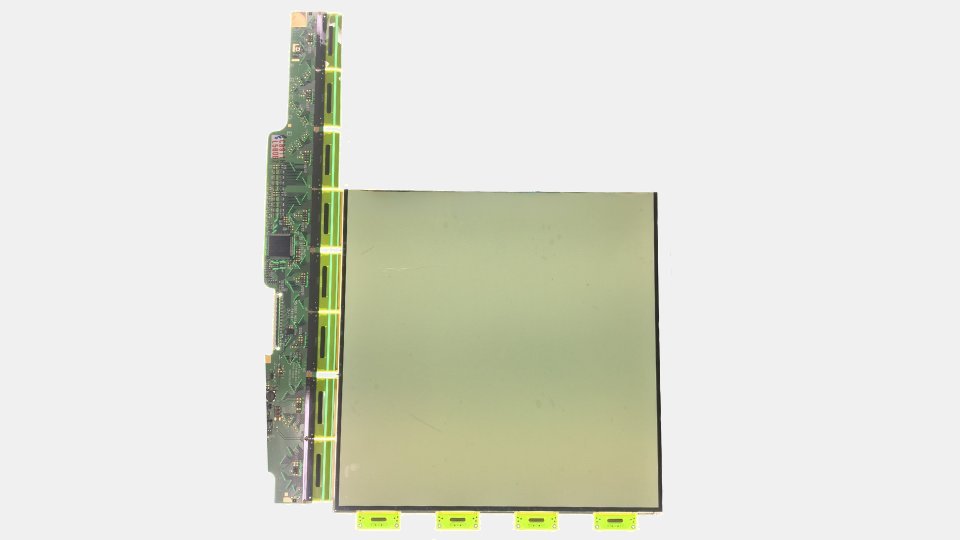

Phase 02 — LCD cell after resizing, glass removed
02 Cell Resized
Phase 03 — Completed resized LCD, final format
03 Final Format
// Service 02

COMPLETE MODULE ASSEMBLY

Program-ready display. We manage the full stack.

Integration of a resized LCD cell into a complete display module — including backlight, driver electronics, housing, and connectors. Delivered as a tested, connectorized assembly ready for program installation. Appropriate for programs that require an integrated display rather than a bare cell.

Module configurations include standard, high-brightness, dual-mode, and NVIS-compatible builds. Housing, bezel, and connector specifications defined by program requirements. Functional testing performed prior to shipment.

Deliverable Integrated module assembly
Testing Full functional verification
Configurations Standard · High-brightness · NVIS
Interfaces To program specification
Minimum Order No MOQ
Lead Time 6–8 Weeks ARO
Discuss Your Program →
Finished 3ATI LCD module — production qualified, Tannas Display Solutions

// Finished 3ATI module — backlight, housing, connectors assembled and tested

// Service 03

FIRST ARTICLE & PROGRAM SUPPORT

first-article inspection reports, production configuration control.

Engineering support for programs requiring formal qualification, first article inspection, and production documentation. Includes dimensional verification, functional testing, and configuration control through production. Required for aerospace and defense programs with formal first article acceptance criteria.

Lot traceability and production configuration records maintained throughout the program lifecycle. Supply continuity planning available for programs requiring consistent display specifications across multi-year production runs.

Documentation First-article inspection reports and exhaustive test documentation
Config Control Production lot traceability
Verification Dimensional + functional
First Article Before production commitment
Long-Term Supply Multi-year program support
Scope Aerospace · Defense · Medical programs
Discuss Your Program →
ATI LCD module exploded engineering assembly drawing — designed in-house

// ATI module assembly design — engineered in-house to program specification

// Start Here

READY TO SUBMIT A REQUIREMENT?

No minimum order. Engineering response within one business day at no charge.

Request a Free Feasibility Review Browse the Catalog

// Common Questions

FREQUENTLY ASKED QUESTIONS

What LCD sizes can Tannas Display Solutions produce?

Tannas Display Solutions can resize LCD cells to virtually any active area dimension. There is no standard size requirement — the process works from any donor panel and targets any custom active area including square, ATI format, and non-standard aspect ratios.

What is LCD cell resizing?

LCD cell resizing is the physical process of cutting the glass substrate and optical stack of a commercial LCD panel and resealing it to a custom active area dimension. The flex ribbon, driver PCB, and electrical interface are modified to match the new geometry. The result is a fully functional active matrix display at a size that no OEM manufactures.

Do you have a minimum order quantity for LCD resizing services?

No. There is no minimum order quantity. Tannas Display Solutions serves programs requiring a single first-article unit through full production runs.

What is the lead time for custom LCD resizing?

Standard lead time is 6 to 8 weeks after receipt of order. Free feasibility review and budgetary quote provided within one business day of inquiry.
