6–8 WKS
ARO Lead Time
No MOQ
Any Quantity
2ATI → 36×5
Size Range

// Most Requested Formats

FREQUENTLY SPECIFIED

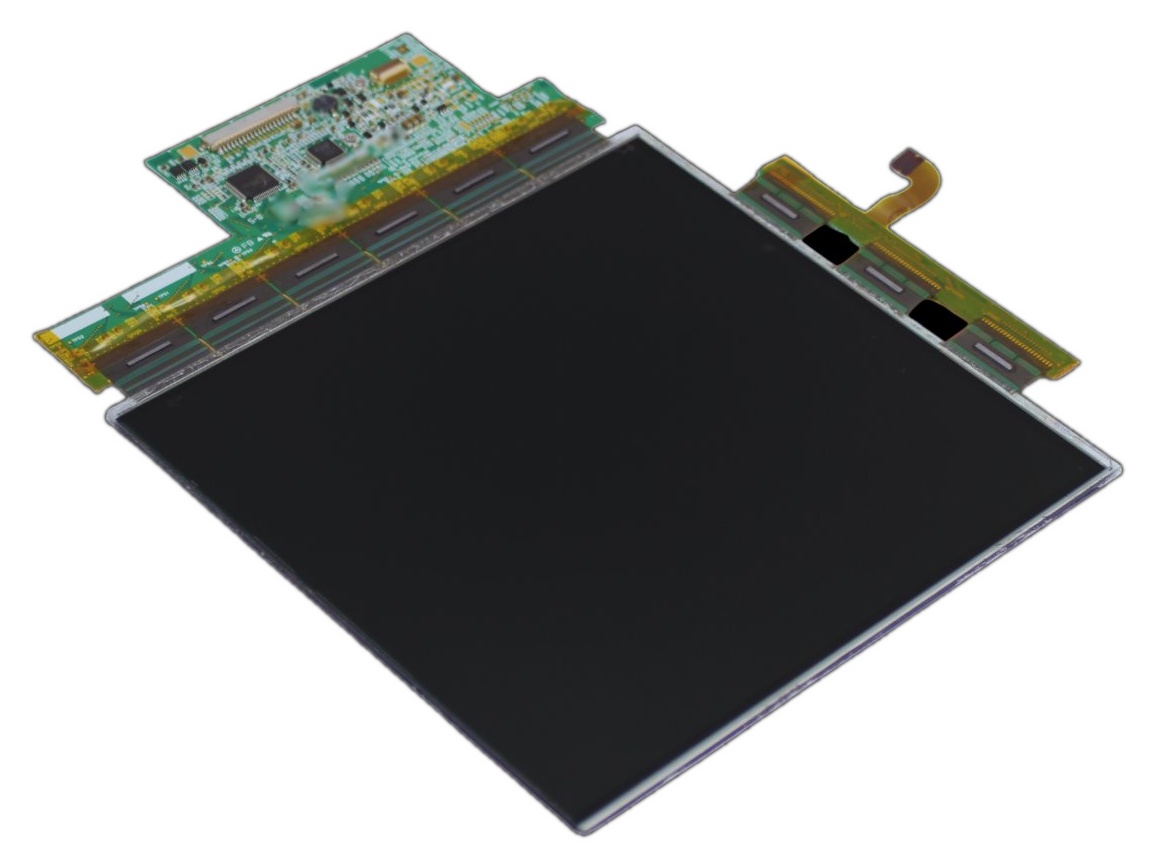

6x6 square LCD display TD11-062062
// Square — High Demand
6×6 Square LCD
TD11-062062
Active Area
158.40 × 158.40 mm
Resolution
768 × 768
Format
Square
Lead Time
6–8 Weeks ARO

Most frequently requested square format. Flight simulation, medical imaging, and industrial HMI. Available as cell only or complete module.

Request Quote

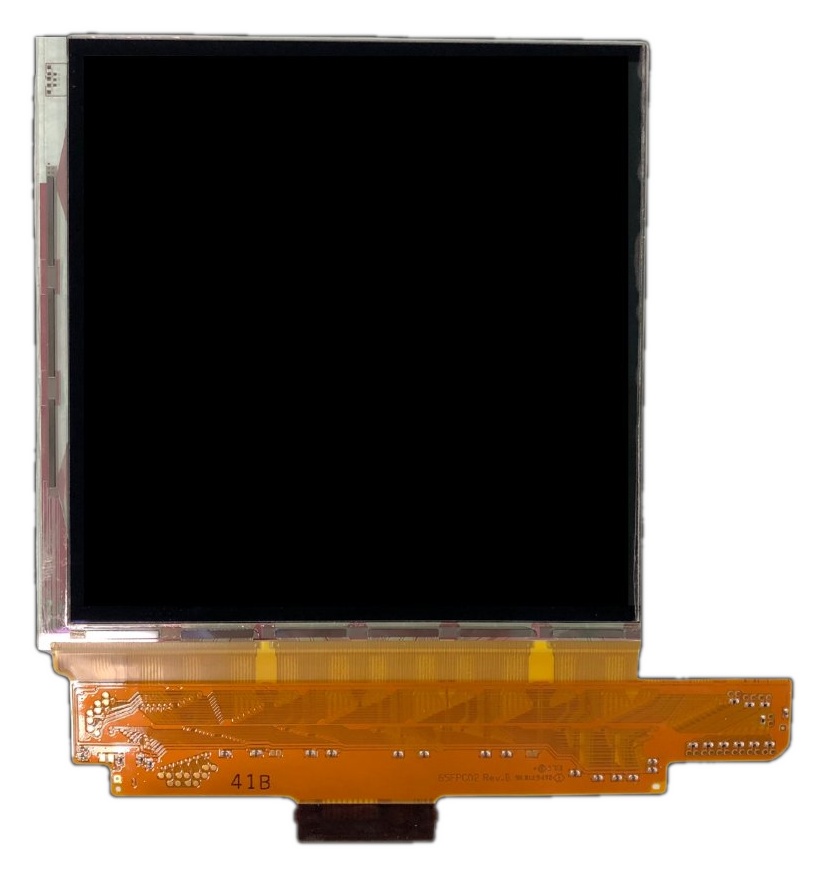

4ATI LCD display panel TD11-033033
// ATI — Avionics Standard
4ATI LCD
TD11-033033
Active Area
82.66 × 82.66 mm
Resolution
640 × 640
Format
4ATI Standard
Lead Time
6–8 Weeks ARO

Standard 4ATI cockpit instrument format. Primary flight display and flight simulator retrofit programs. MIL-NVIS compatible configurations available on request.

Request Quote
64 Catalog Formats Below // Filter by format or search by dimension Square · ATI · Wide · All →

// Full Product Catalog

ALL FORMATS

64 formats
No formats match your search.

Square

6 formats

Square-format LCD panels produced through the physical resizing process. Equal horizontal and vertical active area — a form factor that no OEM manufactures. Common in simulation, medical imaging, and industrial display applications.

SizePart NumberActive Area (mm)ResolutionNotes
3×3 TD11-028028 70.00 × 70.00 388 × 388 Quote
5×5 TD11-050050 126.72 × 126.72 1280 × 1280 High-resolution square format. Quote
6×6 TD11-062062 158.40 × 158.40 768 × 768 Most requested square format. Simulator, medical, and industrial HMI. Quote
7×7 TD11-073073 184.32 × 184.32 768 × 768 Quote
8×8 TD11-079079 200.06 × 200.06 1920 × 1920 Quote
9×9 TD11-090090 228.60 × 228.60 1200 × 1200 Quote

ATI

10 formats

Air Transport Instrument standard form factors, 2ATI through 6ATI. Used in cockpit instrumentation, primary flight displays, and flight simulator retrofit programs. Named for the ATI instrument family standard.

SizePart NumberActive Area (mm)ResolutionNotes
2ATI TD11-018018 45.68 × 45.68 360 × 360 Round-equivalent cockpit instrument format. Avionics and simulator retrofit. Quote
3ATI TD11-024024 60.22 × 60.22 480 × 480 High-demand ATI format. Common in flight simulator retrofit programs. Quote
3ATI TD11-026026 64.80 × 64.80 480 × 480 Quote
4ATI TD11-031031 80.00 × 80.00 480 × 480 Standard 4ATI cockpit instrument format. Quote
4ATI TD11-033033 82.66 × 82.66 640 × 640 Higher-resolution 4ATI variant. Quote
5ATI TD11-039039 99.40 × 99.40 960 × 960 Quote
5ATI TD11-042042 106.70 × 106.70 640 × 640 Quote
6ATI TD11-048048 121.54 × 121.54 768 × 768 Largest ATI format. Quote

Rectangular

27 formats

Custom rectangular formats covering a wide range of aspect ratios and physical sizes. Engineered for cockpit multi-function displays, medical panels, industrial HMI, and program-specific requirements.

SizePart NumberActive Area (mm)ResolutionNotes
3×6 TD11-028058 70.00 × 148.00 340 × 720 Quote
4×3 TD11-040030 101.76 × 76.32 640 × 480 Quote
4×3 TD11-040035 101.60 × 89.00 610 × 534 Quote
4×4 TD11-039044 99.40 × 111.78 960 × 1080 Quote
5×3 TD11-045034 115.20 × 86.40 640 × 480 Quote
5×4 TD11-050042 127.87 × 106.68 768 × 640 Quote
5×4 TD11-052040 132.90 × 101.85 1284 × 984 Quote
5×4 TD11-053042 134.20 × 107.70 1296 × 1040 Quote
6×4 TD11-060042 152.50 × 106.90 742 × 520 Quote
6×5 TD11-060050 152.00 × 127.87 912 × 768 Quote
6×8 TD11-060080 152.62 × 203.36 740 × 986 Quote
6×8 TD11-062083 158.40 × 211.20 768 × 1024 Quote
7×5 TD11-070046 178.20 × 115.70 1800 × 1168 Quote
8×6 TD11-080060 203.36 × 152.62 986 × 740 Quote
8×6 TD11-083062 211.20 × 158.40 1024 × 768 Quote
8×10 TD11-084098 213.90 × 249.08 772 × 900 Quote
10×8 TD11-091073 230.40 × 184.32 960 × 768 Quote
10×8 TD11-100085 254.59 × 214.81 1280 × 1080 Quote
10×9 TD11-096090 243.90 × 228.60 1280 × 1200 Quote
11×8 TD11-105082 266.80 × 208.90 1400 × 1096 Quote
12×9 TD11-120090 304.80 × 228.60 1600 × 1200 Quote
14×10 TD11-136102 345.41 × 259.06 1280 × 960 Quote
15×10 TD11-148099 376.32 × 251.67 1280 × 856 Quote
20×8 TD11-200080 507.65 × 203.06 2560 × 1024 Wide-format primary display. Quote
20×8 TD11-200085 509.18 × 214.81 2560 × 1080 Quote
20×13 TD11-204128 518.40 × 324.00 1920 × 1200 Quote
27×15 TD11-275155 698.40 × 392.85 1920 × 1080 Quote

Wide

16 formats

Wide-format panels for panoramic instrument clusters, multi-display configurations, and specialized industrial applications.

SizePart NumberActive Area (mm)ResolutionNotes
1×4 TD11-013044 33.20 × 111.78 320 × 1080 Quote
1×4 TD11-011043 28.00 × 109.60 270 × 1058 Quote
3×1 TD11-034010 87.60 × 25.40 648 × 188 Quote
4×1 TD11-043014 108.00 × 36.00 800 × 266 Quote
5×1 TD11-048014 121.80 × 35.50 1176 × 342 Quote
5×1 TD11-049013 124.20 × 34.00 1200 × 328 Quote
6×3 TD11-060028 152.40 × 69.90 800 × 366 Quote
8×2 TD11-077022 196.80 × 54.85 800 × 222 Quote
10×2 TD11-097024 245.96 × 61.60 1024 × 256 Quote
14×5 TD11-144045 365.76 × 114.30 1920 × 600 Quote
18×7 TD11-181073 460.80 × 184.32 1920 × 768 Quote
19×4 TD11-188035 476.64 × 89.37 1920 × 360 Quote
19×9 TD11-188090 476.64 × 228.39 1920 × 920 Quote
19×11 TD11-188106 476.64 × 268.11 1920 × 1080 Quote
24×10 TD11-244098 620.93 × 249.70 3840 × 1544 Quote
28×9 TD11-275091 698.40 × 230.20 1920 × 632 Quote

Ultra-Wide

5 formats

Extreme aspect ratio strip formats for heads-up display elements, edge-lit signage, and specialized applications.

SizePart NumberActive Area (mm)ResolutionNotes
1×4 TD11-009043 22.75 × 109.30 92 × 444 Quote
4×1 TD11-043009 108.00 × 22.00 800 × 162 Quote
13×2 TD11-133017 337.92 × 42.24 1280 × 160 Quote
14×2 TD11-144023 365.76 × 57.15 1920 × 300 Quote
36×5 TD11-362055 919.30 × 138.85 1920 × 290 Quote
Dimensions
All values in millimeters. Active Area (AA) is the pixel-active display region — the area that produces image content.
Outer Dimensions
OD not listed — varies by configuration: cell only, cell + flex, or complete backlight assembly.
Lead Time
6–8 weeks ARO (After Receipt of Order). No minimum order quantity on any catalog format.
MIL-NVIS
NVIS-compatible backlight configurations available on selected formats upon request.
Custom Sizes
Don't see your size? Bring us your active area requirement and we will tell you what is achievable.

// Custom Formats

NEED A SIZE NOT LISTED?

Every catalog format started as a custom requirement. No minimum order — engineering response within one business day.

Request a Quote Our Capabilities →

// Why TDS

THE PROCESS BEHIND EVERY PANEL

01

Physical Cell Resizing

We cut and re-seal the LCD cell — modifying the glass, optical stack, flex ribbon, and PCB — to match your exact dimensions. Rooted in the work of Larry Tannas, who pioneered the technique.

02

Active Matrix Preserved

Every resized panel maintains full active matrix operation and image performance of the donor panel. OEM-grade performance at your required dimensions — not a compromise.

03

6–8 Weeks ARO

Standard LCD cell resizing: 6–8 weeks After Receipt of Order. No minimum order quantity on any catalog format. Complete module assemblies vary based on backlight design.
